Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.4 — 1.425 GeV | |
| Ebeam : | 5.754 GeV |
|

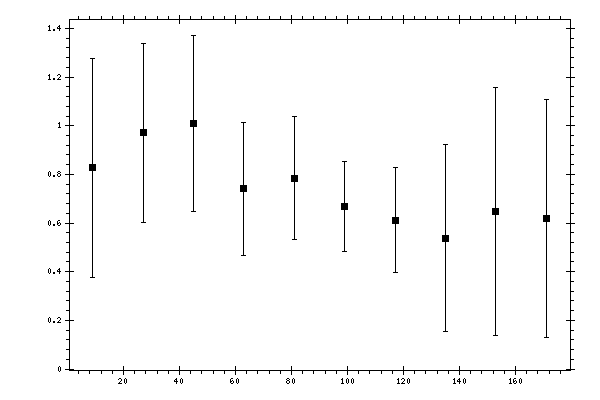

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.8282 | 0.082 | 0.3506 | 0.4499 |
| 27 | 0.9715 | 0.0664 | 0.2549 | 0.3687 |
| 45 | 1.0113 | 0.0577 | 0.2536 | 0.3616 |
| 63 | 0.7406 | 0.0472 | 0.2307 | 0.2736 |
| 81 | 0.7853 | 0.0469 | 0.2063 | 0.2532 |
| 99 | 0.669 | 0.0496 | 0.1793 | 0.186 |
| 117 | 0.6122 | 0.0426 | 0.2129 | 0.2171 |
| 135 | 0.5381 | 0.0369 | 0.3044 | 0.3857 |
| 153 | 0.6475 | 0.0025 | 0.4569 | 0.5082 |
| 171 | 0.6192 | 0.0029 | 0.4369 | 0.4905 |
