Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.425 — 1.45 GeV | |
| Ebeam : | 5.754 GeV |
|

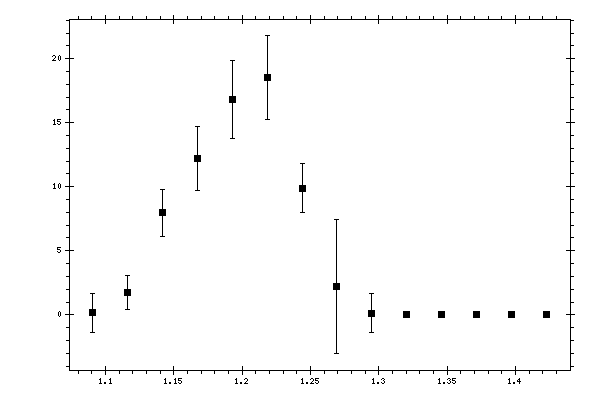

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 0.1598 | 0.0147 | 0.0971 | 1.5178 |
| 1.116155 | 1.7686 | 0.1638 | 0.6572 | 1.3366 |
| 1.141697 | 7.9701 | 0.4833 | 1.7886 | 1.8528 |
| 1.167239 | 12.2324 | 0.6627 | 2.4182 | 2.5073 |
| 1.192781 | 16.8124 | 0.8093 | 2.926 | 3.0359 |
| 1.218323 | 18.5087 | 0.91 | 3.1424 | 3.2715 |
| 1.243865 | 9.8848 | 0.5719 | 1.8362 | 1.9232 |
| 1.269407 | 2.216 | 0.1771 | 0.5682 | 5.2082 |
| 1.294949 | 0.1196 | 0.018 | 0.0695 | 1.5196 |
| 1.320491 | 0 | 0.0061 | 0 | 0.0061 |
| 1.346033 | 0 | 0.0046 | 0 | 0 |
| 1.371575 | 0 | 0.0016 | 0 | 0 |
| 1.397117 | 0 | 0.0022 | 0 | 0 |
| 1.422659 | 0 | 0 | 0 | 0 |
