Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.425 — 1.45 GeV | |
| Ebeam : | 5.754 GeV |
|

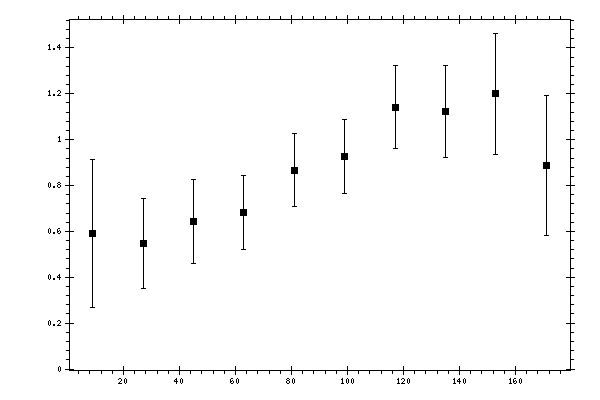

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.5912 | 0.0398 | 0.3185 | 0.3209 |
| 27 | 0.5479 | 0.0423 | 0.1929 | 0.1975 |
| 45 | 0.6435 | 0.0474 | 0.1787 | 0.1849 |
| 63 | 0.6835 | 0.0587 | 0.1498 | 0.1609 |
| 81 | 0.8671 | 0.0499 | 0.1507 | 0.1588 |
| 99 | 0.9276 | 0.0681 | 0.1461 | 0.1612 |
| 117 | 1.141 | 0.0606 | 0.1708 | 0.1812 |
| 135 | 1.1222 | 0.0784 | 0.1693 | 0.201 |
| 153 | 1.1994 | 0.0783 | 0.1931 | 0.2628 |
| 171 | 0.8874 | 0.0982 | 0.2327 | 0.3057 |
