Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcb/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.45 — 1.475 GeV | |
| Ebeam : | 5.754 GeV |
|

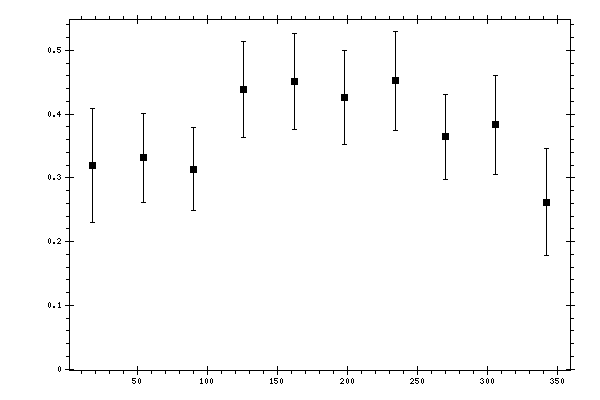

Observable quantity measured (Y axis): dσ/dψ(π−), mcb/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.3192 | 0.0263 | 0.0856 | 0.0896 |
| 54 | 0.3316 | 0.0264 | 0.0649 | 0.07 |
| 90 | 0.3136 | 0.0316 | 0.0564 | 0.0646 |
| 126 | 0.4389 | 0.0235 | 0.0715 | 0.0752 |
| 162 | 0.4517 | 0.0231 | 0.0715 | 0.0752 |
| 198 | 0.4266 | 0.0277 | 0.0683 | 0.0737 |
| 234 | 0.4525 | 0.0237 | 0.0738 | 0.0775 |
| 270 | 0.3642 | 0.0212 | 0.0628 | 0.0663 |
| 306 | 0.3832 | 0.0274 | 0.0723 | 0.0773 |
| 342 | 0.2616 | 0.0256 | 0.0797 | 0.0837 |
