Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.45 — 1.475 GeV | |
| Ebeam : | 5.754 GeV |
|

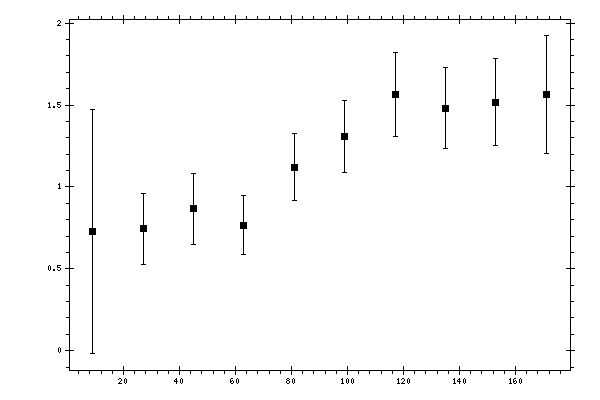

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.7306 | 0.0807 | 0.303 | 0.7451 |
| 27 | 0.7439 | 0.0673 | 0.2082 | 0.2188 |
| 45 | 0.8677 | 0.0623 | 0.2071 | 0.2163 |
| 63 | 0.7672 | 0.0717 | 0.1654 | 0.1802 |
| 81 | 1.1205 | 0.072 | 0.1925 | 0.2056 |
| 99 | 1.3092 | 0.063 | 0.2123 | 0.2214 |
| 117 | 1.564 | 0.0755 | 0.2457 | 0.257 |
| 135 | 1.4814 | 0.0717 | 0.2341 | 0.2449 |
| 153 | 1.5168 | 0.0948 | 0.2481 | 0.2656 |
| 171 | 1.5644 | 0.1519 | 0.324 | 0.3578 |
