Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.475 — 1.5 GeV | |
| Ebeam : | 5.754 GeV |
|

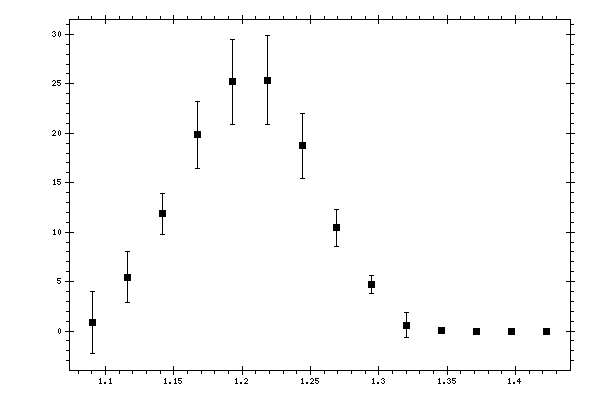

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 0.8809 | 0.1077 | 0.2001 | 3.1141 |
| 1.116155 | 5.4662 | 0.3976 | 0.919 | 2.5676 |
| 1.141697 | 11.8387 | 0.6617 | 1.9226 | 2.0333 |
| 1.167239 | 19.8277 | 0.9021 | 3.2248 | 3.3486 |
| 1.192781 | 25.1913 | 0.9515 | 4.171 | 4.2782 |
| 1.218323 | 25.3661 | 1.4053 | 4.2614 | 4.4871 |
| 1.243865 | 18.7429 | 0.889 | 3.1756 | 3.2977 |
| 1.269407 | 10.4248 | 0.5795 | 1.8277 | 1.9174 |
| 1.294949 | 4.7231 | 0.3599 | 0.8096 | 0.886 |
| 1.320491 | 0.5945 | 0.0793 | 0.1588 | 1.2891 |
| 1.346033 | 0.0148 | 0.0064 | 0.0091 | 0.067 |
| 1.371575 | 0 | 0 | 0 | 0 |
| 1.397117 | 0 | 0 | 0 | 0 |
| 1.422659 | 0 | 0 | 0 | 0 |
