Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.475 — 1.5 GeV | |
| Ebeam : | 5.754 GeV |
|

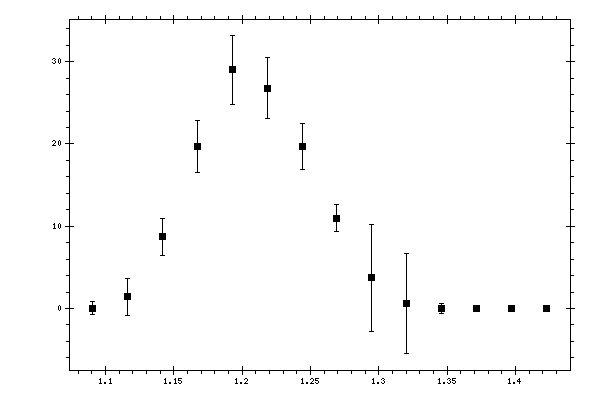

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 0.0216 | 0.0105 | 0.0132 | 0.8106 |
| 1.116155 | 1.3977 | 0.1881 | 0.4256 | 2.2291 |
| 1.141697 | 8.7222 | 0.5334 | 1.6131 | 2.2256 |
| 1.167239 | 19.6937 | 0.9681 | 3.0561 | 3.2058 |
| 1.192781 | 28.9899 | 1.2965 | 3.9384 | 4.1463 |
| 1.218323 | 26.7598 | 1.1547 | 3.5129 | 3.6978 |
| 1.243865 | 19.6985 | 0.864 | 2.6224 | 2.761 |
| 1.269407 | 10.9786 | 0.6031 | 1.5644 | 1.6767 |
| 1.294949 | 3.7227 | 0.4514 | 0.6921 | 6.4884 |
| 1.320491 | 0.6526 | 0.0749 | 0.2082 | 6.0785 |
| 1.346033 | 0.0191 | 0.0116 | 0.0117 | 0.6117 |
| 1.371575 | 0 | 0.0055 | 0 | 0 |
| 1.397117 | 0 | 0.0022 | 0 | 0 |
| 1.422659 | 0 | 0.0015 | 0 | 0 |
