Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.475 — 1.5 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

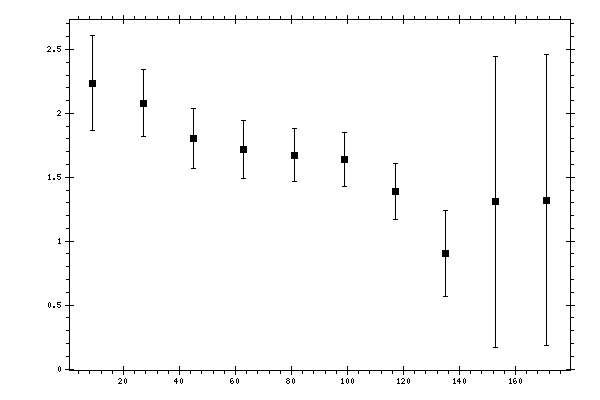

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.2365 | 0.2279 | 0.295 | 0.3728 |
| 27 | 2.0811 | 0.0952 | 0.2473 | 0.265 |
| 45 | 1.8039 | 0.0895 | 0.2183 | 0.2359 |
| 63 | 1.7158 | 0.0839 | 0.2106 | 0.2267 |
| 81 | 1.6746 | 0.066 | 0.1997 | 0.2103 |
| 99 | 1.6392 | 0.0737 | 0.1972 | 0.2105 |
| 117 | 1.3871 | 0.1244 | 0.1807 | 0.2194 |
| 135 | 0.9037 | 0.0707 | 0.2047 | 0.3394 |
| 153 | 1.3087 | 0.0067 | 0.8011 | 1.1369 |
| 171 | 1.3187 | 0.0031 | 0.8073 | 1.1387 |
