Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.475 — 1.5 GeV | |
| Ebeam : | 5.754 GeV |
|

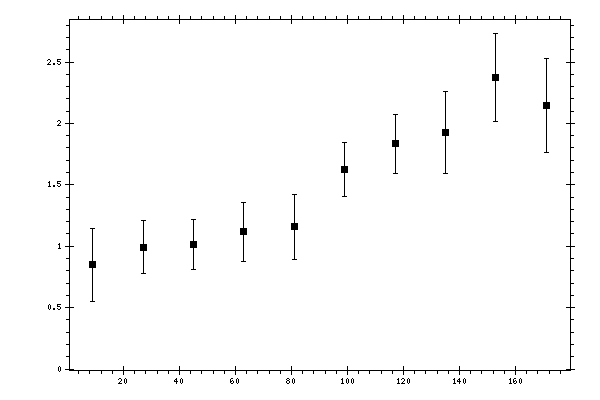

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.8507 | 0.1015 | 0.2795 | 0.2973 |
| 27 | 0.9905 | 0.0804 | 0.2011 | 0.2166 |
| 45 | 1.015 | 0.0685 | 0.1899 | 0.2019 |
| 63 | 1.1184 | 0.1663 | 0.1741 | 0.2408 |
| 81 | 1.1571 | 0.2075 | 0.161 | 0.2626 |
| 99 | 1.6218 | 0.0727 | 0.2083 | 0.2206 |
| 117 | 1.8355 | 0.079 | 0.2275 | 0.2408 |
| 135 | 1.9247 | 0.0863 | 0.2367 | 0.3344 |
| 153 | 2.3728 | 0.1111 | 0.2921 | 0.3603 |
| 171 | 2.1477 | 0.1886 | 0.3312 | 0.3812 |
