Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |

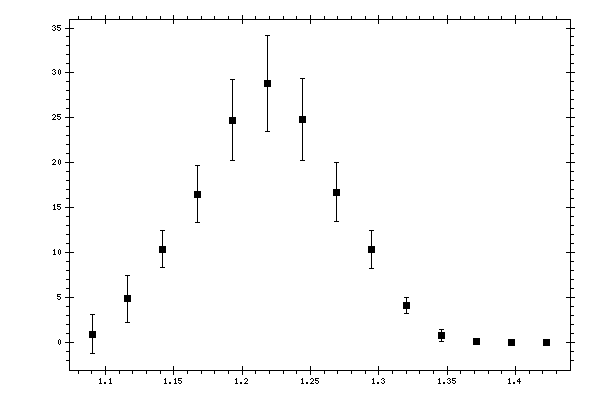

Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 0.8977 | 0.1179 | 0.2203 | 2.1293 |
| 1.116155 | 4.82 | 0.4205 | 0.9325 | 2.5939 |
| 1.141697 | 10.3605 | 0.6475 | 1.9287 | 2.0345 |
| 1.167239 | 16.4775 | 0.8661 | 3.0244 | 3.146 |
| 1.192781 | 24.748 | 1.0414 | 4.4072 | 4.5286 |
| 1.218323 | 28.8026 | 1.1285 | 5.2014 | 5.3224 |
| 1.243865 | 24.8179 | 0.9194 | 4.4989 | 4.5919 |
| 1.269407 | 16.7152 | 0.723 | 3.1674 | 3.2489 |
| 1.294949 | 10.316 | 0.7315 | 1.9482 | 2.081 |
| 1.320491 | 4.0823 | 0.4917 | 0.7966 | 0.9361 |
| 1.346033 | 0.728 | 0.1024 | 0.1846 | 0.6301 |
| 1.371575 | 0.0147 | 0.0048 | 0.0092 | 0.1052 |
| 1.397117 | 0 | 0 | 0 | 0 |
| 1.422659 | 0 | 0 | 0 | 0 |
