Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|

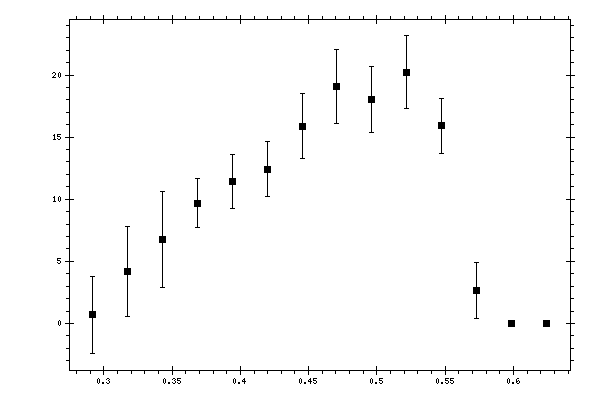

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 0.291911 | 0.713 | 0.0922 | 0.2752 | 3.1045 |
| 0.317453 | 4.1789 | 0.4216 | 1.1047 | 3.5955 |
| 0.342995 | 6.7867 | 0.5778 | 1.4851 | 3.8738 |
| 0.368537 | 9.6874 | 0.7213 | 1.8433 | 1.9794 |
| 0.394079 | 11.4204 | 0.8132 | 2.0199 | 2.1775 |
| 0.419621 | 12.4278 | 0.8409 | 2.0533 | 2.2188 |
| 0.445163 | 15.8976 | 0.8432 | 2.4758 | 2.6155 |
| 0.470705 | 19.0842 | 1.0289 | 2.8024 | 2.9853 |
| 0.496247 | 18.0422 | 0.7883 | 2.5404 | 2.6599 |
| 0.521789 | 20.2349 | 0.9856 | 2.7511 | 2.9223 |
| 0.547331 | 15.8992 | 0.6901 | 2.1299 | 2.2389 |
| 0.572873 | 2.6484 | 0.1913 | 0.3843 | 2.2247 |
| 0.598415 | 0.0009 | 0.0001 | 0.0005 | 0.0006 |
| 0.623957 | 0 | 0 | 0 | 0 |
