Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|

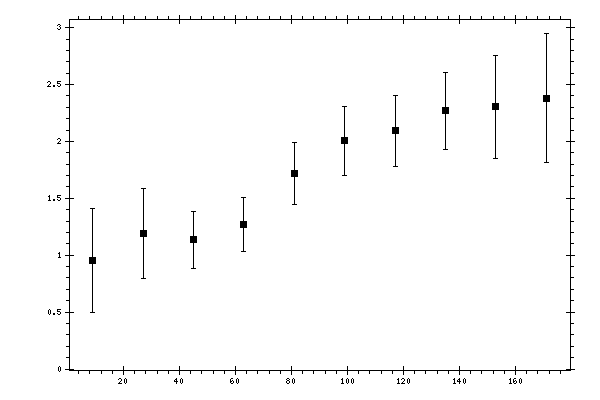

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.9533 | 0.1005 | 0.3399 | 0.4537 |
| 27 | 1.1888 | 0.0982 | 0.2614 | 0.3966 |
| 45 | 1.1354 | 0.0973 | 0.2304 | 0.2501 |
| 63 | 1.2677 | 0.0816 | 0.2217 | 0.2362 |
| 81 | 1.7205 | 0.0845 | 0.2595 | 0.2729 |
| 99 | 2.0041 | 0.0888 | 0.2922 | 0.3054 |
| 117 | 2.0924 | 0.0876 | 0.3011 | 0.3136 |
| 135 | 2.269 | 0.1044 | 0.3202 | 0.3368 |
| 153 | 2.3025 | 0.1114 | 0.3284 | 0.4526 |
| 171 | 2.3789 | 0.1903 | 0.4098 | 0.5659 |
