Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.525 — 1.55 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

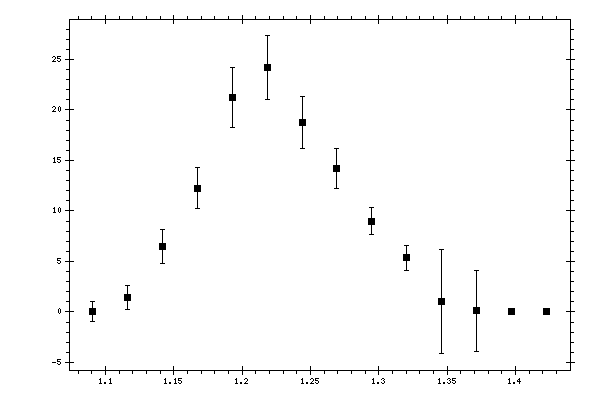

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 0.068 | 0.0114 | 0.0382 | 1.0121 |
| 1.116155 | 1.4014 | 0.1268 | 0.3745 | 1.1874 |
| 1.141697 | 6.4612 | 0.4471 | 1.1923 | 1.6966 |
| 1.167239 | 12.2624 | 0.6281 | 1.9044 | 2.0053 |
| 1.192781 | 21.2536 | 0.9464 | 2.7872 | 2.9435 |
| 1.218323 | 24.1746 | 1.0246 | 2.9879 | 3.1587 |
| 1.243865 | 18.7512 | 1.1277 | 2.306 | 2.567 |
| 1.269407 | 14.211 | 0.787 | 1.7841 | 1.95 |
| 1.294949 | 8.9791 | 0.5493 | 1.2284 | 1.3456 |
| 1.320491 | 5.368 | 0.3953 | 0.8643 | 1.2516 |
| 1.346033 | 1.0419 | 0.1118 | 0.2884 | 5.1199 |
| 1.371575 | 0.1373 | 0.0146 | 0.0808 | 4.0155 |
| 1.397117 | 0.0115 | 0.0073 | 0.0069 | 0.2075 |
| 1.422659 | 0 | 0.0029 | 0 | 0 |
