Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.525 — 1.55 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

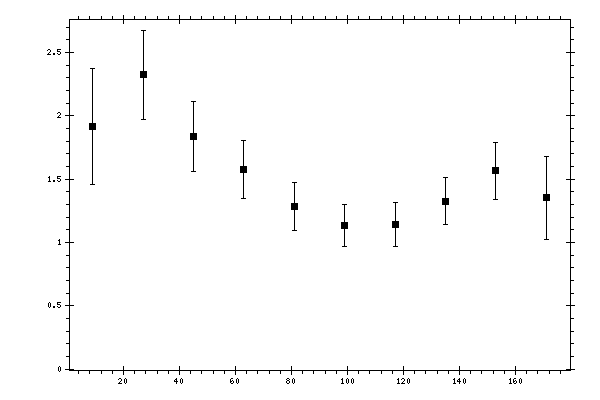

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.917 | 0.1828 | 0.4202 | 0.4582 |
| 27 | 2.3225 | 0.1417 | 0.3188 | 0.3488 |
| 45 | 1.8356 | 0.0993 | 0.2548 | 0.2735 |
| 63 | 1.5751 | 0.0789 | 0.2131 | 0.2272 |
| 81 | 1.2838 | 0.0674 | 0.1748 | 0.1874 |
| 99 | 1.1325 | 0.058 | 0.1549 | 0.1654 |
| 117 | 1.141 | 0.0874 | 0.1513 | 0.1747 |
| 135 | 1.3242 | 0.0698 | 0.1708 | 0.1845 |
| 153 | 1.5639 | 0.0819 | 0.2055 | 0.2212 |
| 171 | 1.3511 | 0.1194 | 0.2457 | 0.3294 |
