Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.525 — 1.55 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

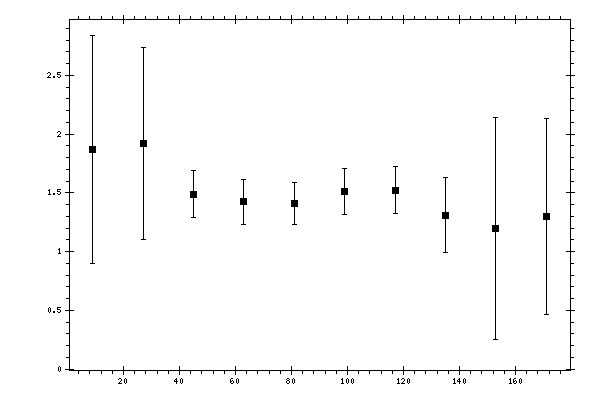

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.8692 | 0.1421 | 0.2399 | 0.9722 |
| 27 | 1.9181 | 0.0861 | 0.2223 | 0.8169 |
| 45 | 1.4869 | 0.072 | 0.1866 | 0.2001 |
| 63 | 1.4235 | 0.0714 | 0.1785 | 0.1923 |
| 81 | 1.406 | 0.0614 | 0.1694 | 0.1802 |
| 99 | 1.5123 | 0.0703 | 0.1808 | 0.194 |
| 117 | 1.5229 | 0.0647 | 0.1861 | 0.197 |
| 135 | 1.3089 | 0.099 | 0.2215 | 0.3186 |
| 153 | 1.1993 | 0.0365 | 0.6982 | 0.9447 |
| 171 | 1.2981 | 0.0028 | 0.7798 | 0.8365 |
