Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.55 — 1.575 GeV | |
| Ebeam : | 5.754 GeV |
|

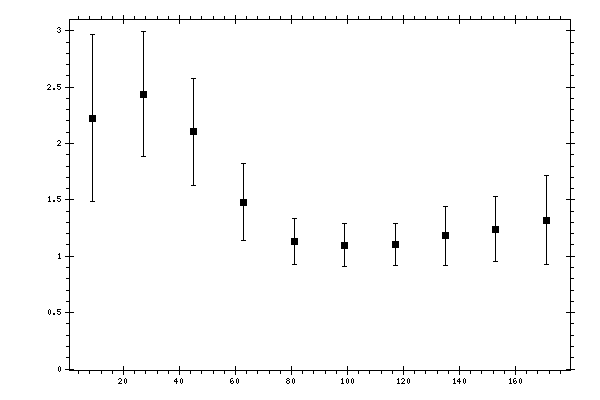

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.2248 | 0.1994 | 0.5189 | 0.7412 |
| 27 | 2.438 | 0.1369 | 0.3853 | 0.5531 |
| 45 | 2.1023 | 0.1242 | 0.3345 | 0.4728 |
| 63 | 1.4792 | 0.0831 | 0.2429 | 0.3436 |
| 81 | 1.1294 | 0.076 | 0.1911 | 0.2056 |
| 99 | 1.0977 | 0.0627 | 0.1787 | 0.1893 |
| 117 | 1.1023 | 0.0627 | 0.1737 | 0.1846 |
| 135 | 1.1811 | 0.0594 | 0.1837 | 0.2639 |
| 153 | 1.2408 | 0.0783 | 0.2017 | 0.2899 |
| 171 | 1.3209 | 0.1177 | 0.2791 | 0.3938 |
