Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.575 — 1.6 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

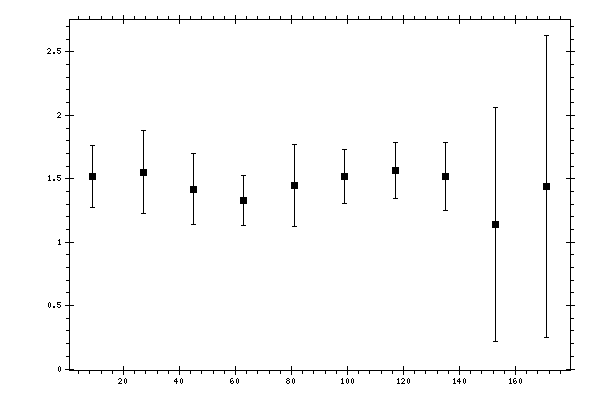

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.5182 | 0.1241 | 0.2121 | 0.2458 |
| 27 | 1.5532 | 0.1039 | 0.203 | 0.3251 |
| 45 | 1.4182 | 0.0825 | 0.1962 | 0.2819 |
| 63 | 1.326 | 0.0714 | 0.1838 | 0.1972 |
| 81 | 1.4459 | 0.0548 | 0.1944 | 0.3205 |
| 99 | 1.5169 | 0.073 | 0.2024 | 0.2152 |
| 117 | 1.5646 | 0.0646 | 0.2095 | 0.2192 |
| 135 | 1.5167 | 0.1191 | 0.238 | 0.2662 |
| 153 | 1.1389 | 0.0683 | 0.632 | 0.9198 |
| 171 | 1.4394 | 0.0027 | 0.881 | 1.1918 |
