Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.6 — 1.625 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

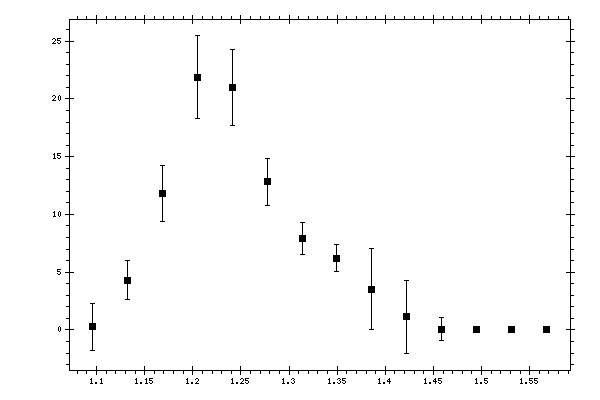

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 0.2591 | 0.0264 | 0.1072 | 2.0292 |
| 1.132227 | 4.3051 | 0.2885 | 1.0494 | 1.6618 |
| 1.168483 | 11.814 | 1.0107 | 2.2168 | 2.4363 |
| 1.204739 | 21.8682 | 0.9361 | 3.4682 | 3.5923 |
| 1.240995 | 21.0196 | 0.9981 | 3.1457 | 3.3003 |
| 1.277252 | 12.835 | 0.572 | 1.9673 | 2.0487 |
| 1.313508 | 7.8994 | 0.5408 | 1.2718 | 1.382 |
| 1.349764 | 6.2249 | 0.5356 | 1.0361 | 1.1663 |
| 1.38602 | 3.5354 | 0.4125 | 0.6727 | 3.4782 |
| 1.422277 | 1.1222 | 0.118 | 0.3065 | 3.133 |
| 1.458533 | 0.0597 | 0.0136 | 0.0356 | 1.0142 |
| 1.494789 | 0.0003 | 0.0025 | 0.0002 | 0.0025 |
| 1.531046 | 0 | 0.0011 | 0 | 0 |
| 1.567302 | 0 | 0.0011 | 0 | 0 |
