Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.6 — 1.625 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

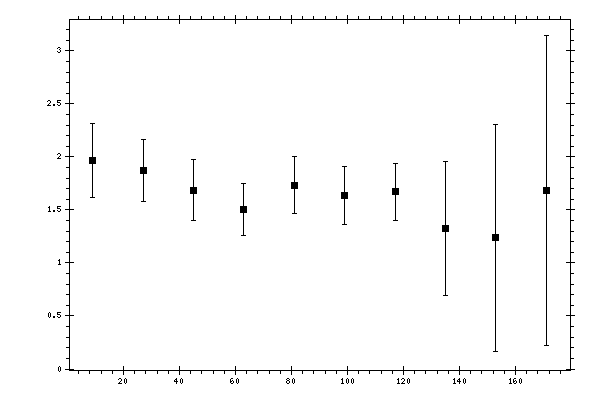

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.9649 | 0.1402 | 0.3202 | 0.3496 |
| 27 | 1.8737 | 0.0964 | 0.2751 | 0.2915 |
| 45 | 1.6872 | 0.1066 | 0.2643 | 0.285 |
| 63 | 1.5084 | 0.0736 | 0.2338 | 0.2451 |
| 81 | 1.7333 | 0.0725 | 0.2571 | 0.2671 |
| 99 | 1.638 | 0.1184 | 0.2458 | 0.2728 |
| 117 | 1.6698 | 0.0878 | 0.2501 | 0.2651 |
| 135 | 1.3261 | 0.0756 | 0.2523 | 0.6285 |
| 153 | 1.2371 | 0.0907 | 0.7237 | 1.0719 |
| 171 | 1.6828 | 0.003 | 1.0598 | 1.4592 |
