Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.625 — 1.65 GeV | |
| Ebeam : | 5.754 GeV |
|

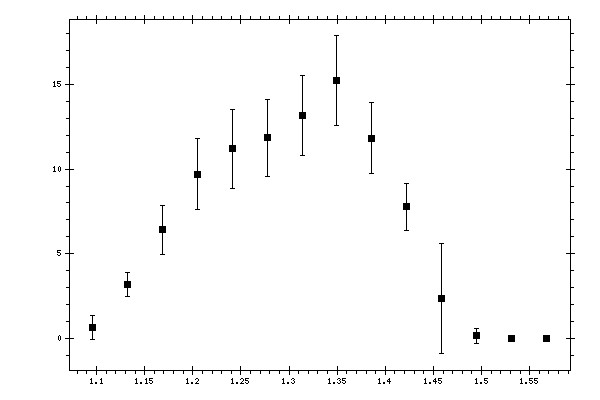

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 0.6439 | 0.0755 | 0.1758 | 0.698 |
| 1.132227 | 3.1532 | 0.2228 | 0.6734 | 0.7093 |
| 1.168483 | 6.4044 | 0.3984 | 1.3873 | 1.4434 |
| 1.204739 | 9.7011 | 0.4116 | 2.0604 | 2.1011 |
| 1.240995 | 11.1996 | 0.5077 | 2.2839 | 2.3397 |
| 1.277252 | 11.8482 | 0.5546 | 2.2228 | 2.291 |
| 1.313508 | 13.176 | 0.4982 | 2.3221 | 2.375 |
| 1.349764 | 15.2387 | 0.7066 | 2.5536 | 2.6495 |
| 1.38602 | 11.8358 | 0.5693 | 2.0068 | 2.086 |
| 1.422277 | 7.7712 | 0.4631 | 1.3188 | 1.3978 |
| 1.458533 | 2.3467 | 0.1967 | 0.4723 | 3.2314 |
| 1.494789 | 0.1331 | 0.0202 | 0.0517 | 0.4234 |
| 1.531046 | 0 | 0 | 0 | 0 |
| 1.567302 | 0 | 0 | 0 | 0 |
