Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcb/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.625 — 1.65 GeV | |
| Ebeam : | 5.754 GeV |
|

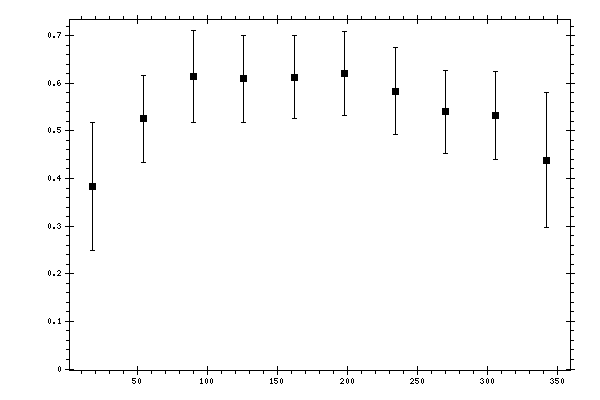

Observable quantity measured (Y axis): dσ/dψ(π−), mcb/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.3833 | 0.0268 | 0.094 | 0.1349 |
| 54 | 0.5252 | 0.0329 | 0.0853 | 0.0914 |
| 90 | 0.6134 | 0.0365 | 0.0892 | 0.0964 |
| 126 | 0.6092 | 0.0283 | 0.0866 | 0.0911 |
| 162 | 0.6125 | 0.0255 | 0.0832 | 0.087 |
| 198 | 0.62 | 0.0272 | 0.0843 | 0.0886 |
| 234 | 0.5836 | 0.035 | 0.0839 | 0.0909 |
| 270 | 0.5404 | 0.0326 | 0.0806 | 0.087 |
| 306 | 0.5321 | 0.0333 | 0.0861 | 0.0923 |
| 342 | 0.4388 | 0.0418 | 0.0994 | 0.1423 |
