Parameter (X axis): W, GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: σ, mcb
Cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.4 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): σ, mcb
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.

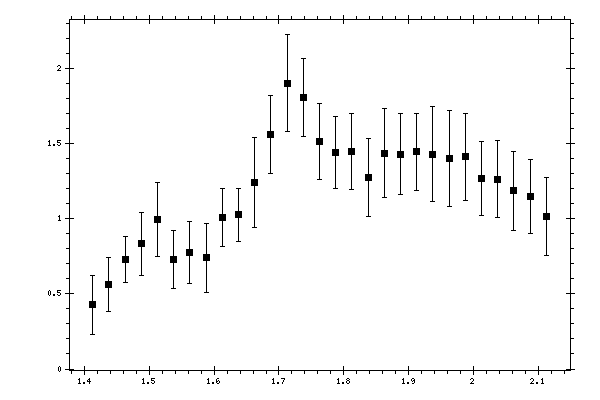

Measured data:
|
W,
GeV |
σ,
mcb |
Total error,
mcb |
|---|---|---|
| 1.4125 | 0.4258 | 0.1971 |
| 1.4375 | 0.5616 | 0.1809 |
| 1.4625 | 0.7271 | 0.1513 |
| 1.4875 | 0.8316 | 0.2109 |
| 1.5125 | 0.9918 | 0.2448 |
| 1.5375 | 0.7273 | 0.1915 |
| 1.5625 | 0.7765 | 0.2063 |
| 1.5875 | 0.738 | 0.2271 |
| 1.6125 | 1.0049 | 0.1931 |
| 1.6375 | 1.0246 | 0.1779 |
| 1.6625 | 1.2414 | 0.2977 |
| 1.6875 | 1.5589 | 0.261 |
| 1.7125 | 1.9003 | 0.3201 |
| 1.7375 | 1.8036 | 0.2572 |
| 1.7625 | 1.5143 | 0.2521 |
| 1.7875 | 1.4382 | 0.24 |
| 1.8125 | 1.4453 | 0.2533 |
| 1.8375 | 1.2753 | 0.2601 |
| 1.8625 | 1.4337 | 0.2955 |
| 1.8875 | 1.4286 | 0.2703 |
| 1.9125 | 1.4437 | 0.2551 |
| 1.9375 | 1.4279 | 0.3158 |
| 1.9625 | 1.398 | 0.3173 |
| 1.9875 | 1.4106 | 0.2872 |
| 2.0125 | 1.265 | 0.2463 |
| 2.0375 | 1.2628 | 0.2537 |
| 2.0625 | 1.1842 | 0.2647 |
| 2.0875 | 1.1461 | 0.2485 |
| 2.1125 | 1.0116 | 0.2604 |
