Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.65 — 1.675 GeV | |
| Ebeam : | 5.754 GeV |
|

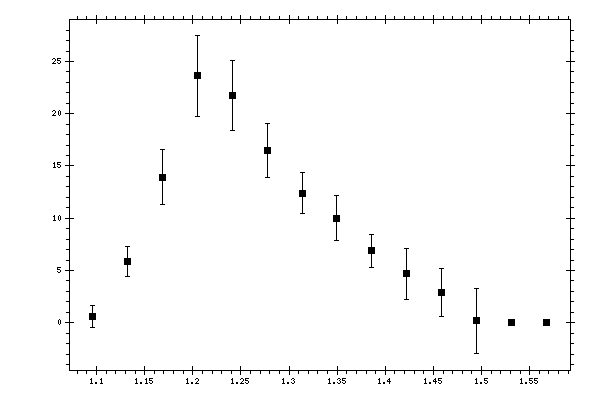

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 0.602 | 0.0542 | 0.1945 | 1.072 |
| 1.132227 | 5.8381 | 0.3923 | 1.3686 | 1.4237 |
| 1.168483 | 13.9324 | 0.7159 | 2.5454 | 2.6441 |
| 1.204739 | 23.6145 | 1.0028 | 3.7012 | 3.8346 |
| 1.240995 | 21.7761 | 0.977 | 3.2147 | 3.3599 |
| 1.277252 | 16.48 | 0.7822 | 2.4255 | 2.5485 |
| 1.313508 | 12.3829 | 0.6969 | 1.8409 | 1.9684 |
| 1.349764 | 9.9894 | 0.527 | 1.5057 | 2.1445 |
| 1.38602 | 6.8811 | 0.3994 | 1.1035 | 1.5648 |
| 1.422277 | 4.6948 | 0.3064 | 0.8216 | 2.4483 |
| 1.458533 | 2.9092 | 0.2211 | 0.5985 | 2.3003 |
| 1.494789 | 0.1864 | 0.0872 | 0.1111 | 3.0892 |
| 1.531046 | 0.0086 | 0.0047 | 0.0054 | 0.0071 |
| 1.567302 | 0 | 0.0015 | 0 | 0 |
