Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.65 — 1.675 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

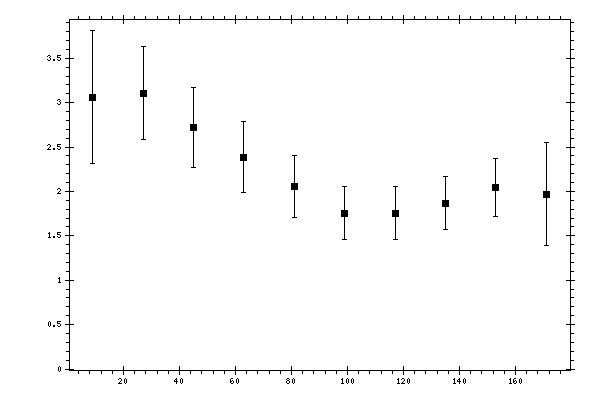

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.0625 | 0.2509 | 0.7048 | 0.7481 |
| 27 | 3.1052 | 0.1723 | 0.4961 | 0.5252 |
| 45 | 2.7199 | 0.1303 | 0.4304 | 0.4497 |
| 63 | 2.3839 | 0.1161 | 0.384 | 0.4011 |
| 81 | 2.0585 | 0.1043 | 0.3331 | 0.349 |
| 99 | 1.7558 | 0.0879 | 0.289 | 0.302 |
| 117 | 1.7548 | 0.0935 | 0.281 | 0.2962 |
| 135 | 1.868 | 0.0841 | 0.2861 | 0.2982 |
| 153 | 2.0446 | 0.098 | 0.3109 | 0.326 |
| 171 | 1.9706 | 0.1413 | 0.3977 | 0.5793 |
