Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.65 — 1.675 GeV | |
| Ebeam : | 5.754 GeV |
|

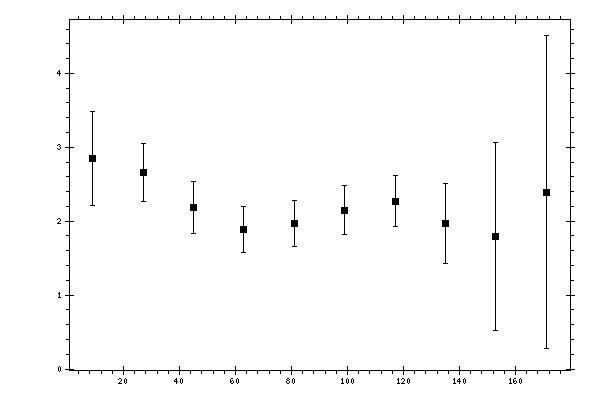

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.8484 | 0.1699 | 0.4374 | 0.642 |
| 27 | 2.6578 | 0.1069 | 0.3805 | 0.3953 |
| 45 | 2.1888 | 0.1122 | 0.3369 | 0.3551 |
| 63 | 1.8905 | 0.1031 | 0.2902 | 0.308 |
| 81 | 1.9725 | 0.0899 | 0.2962 | 0.3095 |
| 99 | 2.1474 | 0.0933 | 0.3169 | 0.3303 |
| 117 | 2.2732 | 0.0852 | 0.3358 | 0.3465 |
| 135 | 1.9698 | 0.1049 | 0.3641 | 0.5445 |
| 153 | 1.7906 | 0.1028 | 0.891 | 1.2684 |
| 171 | 2.3919 | 0.0037 | 1.4929 | 2.1189 |
