Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.65 — 1.675 GeV | |
| Ebeam : | 5.754 GeV |
|

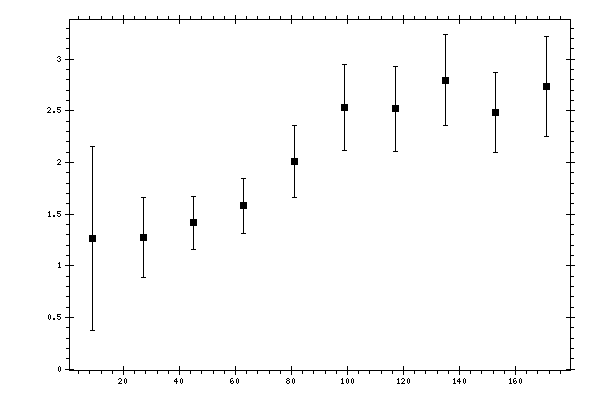

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.2637 | 0.1122 | 0.3735 | 0.8939 |
| 27 | 1.2715 | 0.092 | 0.2519 | 0.3856 |
| 45 | 1.4158 | 0.0723 | 0.2463 | 0.2567 |
| 63 | 1.5789 | 0.0686 | 0.2615 | 0.2703 |
| 81 | 2.0082 | 0.1139 | 0.3299 | 0.349 |
| 99 | 2.5316 | 0.1378 | 0.3903 | 0.4139 |
| 117 | 2.5188 | 0.1252 | 0.3928 | 0.4123 |
| 135 | 2.7981 | 0.1279 | 0.4187 | 0.4378 |
| 153 | 2.4811 | 0.1215 | 0.3678 | 0.3873 |
| 171 | 2.7323 | 0.1796 | 0.4505 | 0.485 |
