Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.675 — 1.7 GeV | |
| Ebeam : | 5.754 GeV |
|

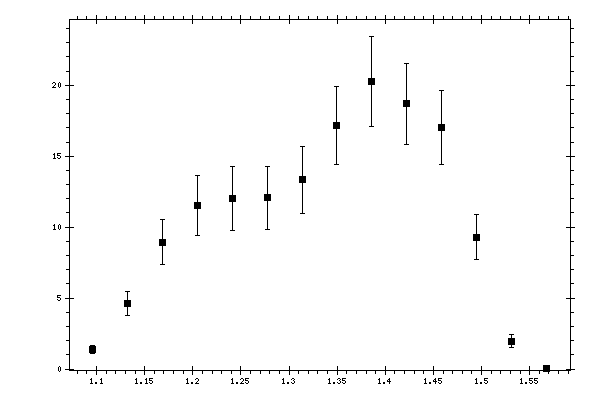

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 1.3694 | 0.1482 | 0.2619 | 0.3009 |
| 1.132227 | 4.5895 | 0.3666 | 0.7575 | 0.8415 |
| 1.168483 | 8.9483 | 0.6093 | 1.4602 | 1.5822 |
| 1.204739 | 11.5527 | 0.6196 | 2.0232 | 2.1159 |
| 1.240995 | 12.0216 | 0.4979 | 2.189 | 2.2449 |
| 1.277252 | 12.0629 | 0.5295 | 2.1647 | 2.2285 |
| 1.313508 | 13.3286 | 0.8706 | 2.2223 | 2.3868 |
| 1.349764 | 17.1442 | 0.8136 | 2.6199 | 2.7433 |
| 1.38602 | 20.2613 | 0.7815 | 3.0727 | 3.1705 |
| 1.422277 | 18.702 | 0.7742 | 2.7339 | 2.8414 |
| 1.458533 | 17.0077 | 0.7606 | 2.4971 | 2.6104 |
| 1.494789 | 9.303 | 0.5012 | 1.4735 | 1.5564 |
| 1.531046 | 1.9564 | 0.1951 | 0.407 | 0.4513 |
| 1.567302 | 0.0104 | 0.001 | 0.0063 | 0.0063 |
