Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.675 — 1.7 GeV | |
| Ebeam : | 5.754 GeV |
|

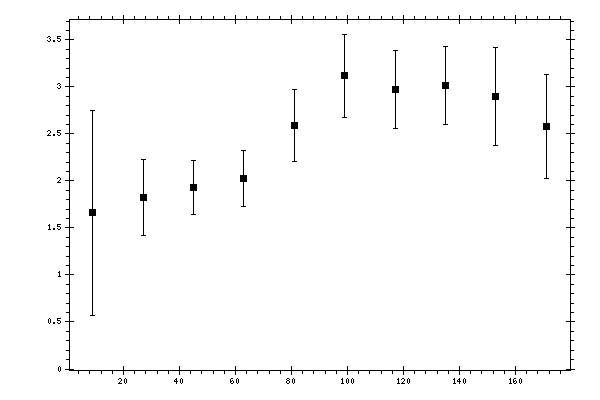

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.6608 | 0.1295 | 0.4058 | 1.088 |
| 27 | 1.8221 | 0.0915 | 0.285 | 0.4076 |
| 45 | 1.9305 | 0.0801 | 0.2736 | 0.2851 |
| 63 | 2.024 | 0.0838 | 0.2851 | 0.2972 |
| 81 | 2.59 | 0.1281 | 0.3636 | 0.3855 |
| 99 | 3.1193 | 0.1627 | 0.4114 | 0.4424 |
| 117 | 2.9723 | 0.1294 | 0.3986 | 0.4191 |
| 135 | 3.0142 | 0.1218 | 0.3926 | 0.411 |
| 153 | 2.8967 | 0.1466 | 0.3643 | 0.5169 |
| 171 | 2.5785 | 0.1913 | 0.3846 | 0.5486 |
