Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.725 — 1.75 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

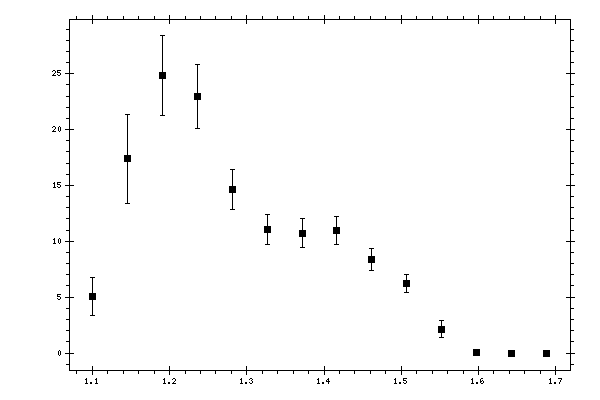

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 5.0764 | 0.3292 | 1.0488 | 1.6932 |
| 1.145619 | 17.3877 | 0.9748 | 2.6689 | 3.9966 |
| 1.190804 | 24.8368 | 1.4918 | 3.2321 | 3.5598 |
| 1.235989 | 22.9493 | 0.9449 | 2.7044 | 2.8647 |
| 1.281174 | 14.6384 | 0.6424 | 1.6937 | 1.8115 |
| 1.326359 | 11.0544 | 0.4946 | 1.2487 | 1.3431 |
| 1.371544 | 10.7425 | 0.5066 | 1.1762 | 1.2807 |
| 1.416728 | 10.9676 | 0.5175 | 1.1657 | 1.2754 |
| 1.461913 | 8.3875 | 0.4186 | 0.9129 | 1.0043 |
| 1.507098 | 6.2492 | 0.3674 | 0.7218 | 0.8099 |
| 1.552283 | 2.1403 | 0.2091 | 0.3467 | 0.7893 |
| 1.597468 | 0.049 | 0.0042 | 0.0284 | 0.0612 |
| 1.642653 | 0 | 0.0014 | 0 | 0 |
| 1.687837 | 0 | 0.0015 | 0 | 0 |
