Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.725 — 1.75 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

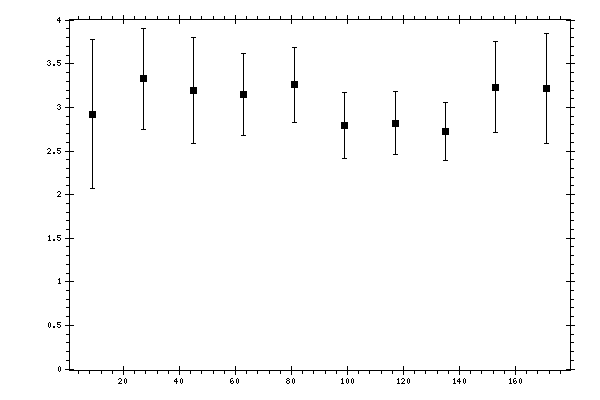

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.9244 | 0.2571 | 0.5498 | 0.8567 |
| 27 | 3.3306 | 0.1769 | 0.4036 | 0.5802 |
| 45 | 3.1901 | 0.1445 | 0.4159 | 0.6087 |
| 63 | 3.149 | 0.2346 | 0.4111 | 0.4733 |
| 81 | 3.2608 | 0.1308 | 0.4114 | 0.4317 |
| 99 | 2.7959 | 0.1316 | 0.355 | 0.3786 |
| 117 | 2.818 | 0.1188 | 0.3394 | 0.3596 |
| 135 | 2.7249 | 0.1178 | 0.3161 | 0.3374 |
| 153 | 3.2323 | 0.1358 | 0.3639 | 0.5231 |
| 171 | 3.2178 | 0.2423 | 0.4472 | 0.629 |
