Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.725 — 1.75 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

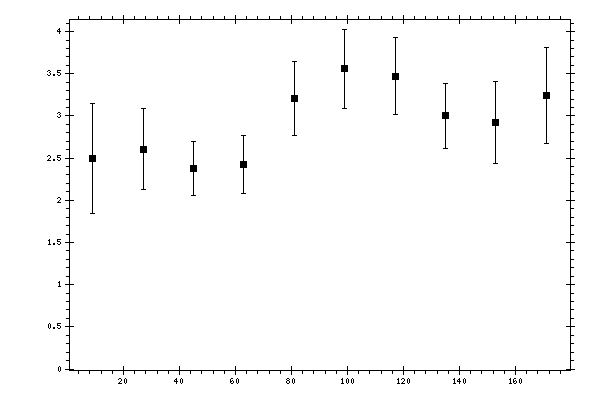

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.4926 | 0.1603 | 0.4587 | 0.6498 |
| 27 | 2.6058 | 0.1206 | 0.3404 | 0.4815 |
| 45 | 2.377 | 0.1036 | 0.3049 | 0.3221 |
| 63 | 2.422 | 0.1039 | 0.3296 | 0.3456 |
| 81 | 3.2073 | 0.1434 | 0.409 | 0.4334 |
| 99 | 3.5597 | 0.1418 | 0.4465 | 0.4685 |
| 117 | 3.4722 | 0.1858 | 0.4208 | 0.46 |
| 135 | 3.0008 | 0.1429 | 0.3568 | 0.3843 |
| 153 | 2.9193 | 0.1407 | 0.3439 | 0.484 |
| 171 | 3.2378 | 0.1811 | 0.4031 | 0.5687 |
