Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.75 — 1.775 GeV | |
| Ebeam : | 5.754 GeV |
|

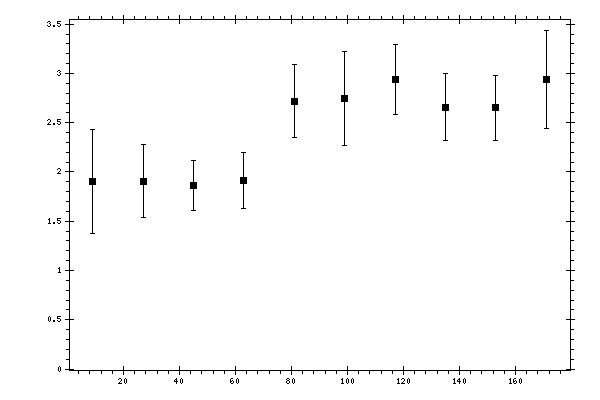

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.9023 | 0.121 | 0.3723 | 0.5256 |
| 27 | 1.9084 | 0.086 | 0.2578 | 0.3704 |
| 45 | 1.8586 | 0.0838 | 0.2391 | 0.2533 |
| 63 | 1.9092 | 0.0891 | 0.2702 | 0.2845 |
| 81 | 2.7189 | 0.1292 | 0.3446 | 0.368 |
| 99 | 2.7428 | 0.3376 | 0.3378 | 0.4776 |
| 117 | 2.9397 | 0.1012 | 0.3422 | 0.3569 |
| 135 | 2.6584 | 0.1418 | 0.3085 | 0.3395 |
| 153 | 2.65 | 0.1221 | 0.3017 | 0.3254 |
| 171 | 2.9419 | 0.17 | 0.3537 | 0.4977 |
