Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.775 — 1.8 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

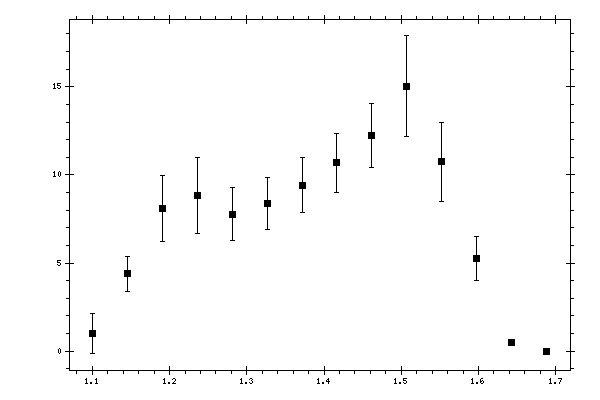

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 1.017 | 0.1105 | 0.2171 | 1.1315 |
| 1.145619 | 4.3804 | 0.3475 | 0.7034 | 0.9976 |
| 1.190804 | 8.0885 | 0.4078 | 1.3113 | 1.8591 |
| 1.235989 | 8.8353 | 0.3833 | 1.5321 | 2.1675 |
| 1.281174 | 7.7627 | 0.4909 | 1.4206 | 1.503 |
| 1.326359 | 8.3864 | 0.4384 | 1.4225 | 1.4885 |
| 1.371544 | 9.4121 | 0.5337 | 1.4786 | 1.572 |
| 1.416728 | 10.6923 | 0.672 | 1.5227 | 1.6644 |
| 1.461913 | 12.2401 | 0.5775 | 1.7119 | 1.8067 |
| 1.507098 | 15.0299 | 0.8014 | 2.0234 | 2.8601 |
| 1.552283 | 10.7328 | 0.5514 | 1.5758 | 2.2254 |
| 1.597468 | 5.2516 | 0.34 | 0.8831 | 1.2467 |
| 1.642653 | 0.485 | 0.1017 | 0.1324 | 0.1868 |
| 1.687837 | 0 | 0 | 0 | 0 |
