Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.775 — 1.8 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

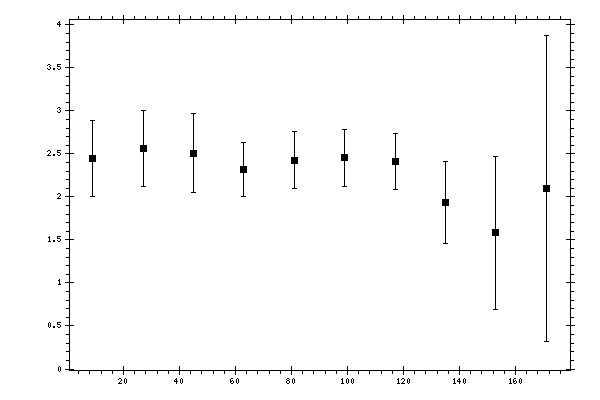

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.4504 | 0.1539 | 0.3133 | 0.4435 |
| 27 | 2.5658 | 0.1108 | 0.3182 | 0.4448 |
| 45 | 2.5087 | 0.1366 | 0.3214 | 0.4582 |
| 63 | 2.3148 | 0.1023 | 0.2979 | 0.315 |
| 81 | 2.4289 | 0.1156 | 0.3131 | 0.3338 |
| 99 | 2.4572 | 0.1087 | 0.3116 | 0.33 |
| 117 | 2.4157 | 0.0805 | 0.3144 | 0.3245 |
| 135 | 1.9319 | 0.1081 | 0.3338 | 0.4751 |
| 153 | 1.5844 | 0.1807 | 0.6281 | 0.8901 |
| 171 | 2.0965 | 0.0029 | 1.2581 | 1.7826 |
