Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.8 — 1.825 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

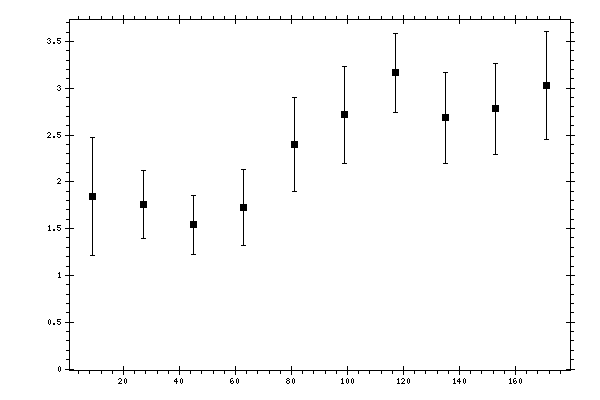

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.8405 | 0.114 | 0.364 | 0.6298 |
| 27 | 1.7614 | 0.0786 | 0.2542 | 0.3626 |
| 45 | 1.5407 | 0.0745 | 0.2245 | 0.3175 |
| 63 | 1.7255 | 0.0899 | 0.2832 | 0.4053 |
| 81 | 2.4008 | 0.1172 | 0.3529 | 0.5021 |
| 99 | 2.7183 | 0.107 | 0.3643 | 0.5171 |
| 117 | 3.1642 | 0.155 | 0.3898 | 0.4195 |
| 135 | 2.6839 | 0.1168 | 0.3454 | 0.4895 |
| 153 | 2.7796 | 0.1511 | 0.3437 | 0.4842 |
| 171 | 3.0309 | 0.1791 | 0.4092 | 0.5786 |
