Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.825 — 1.85 GeV | |
| Ebeam : | 5.754 GeV |
|

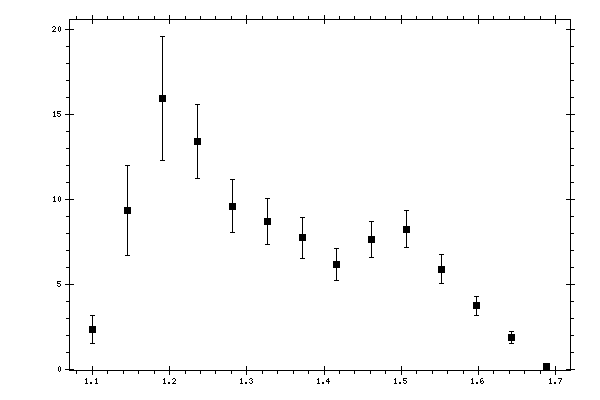

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 2.3108 | 0.1585 | 0.5838 | 0.829 |
| 1.145619 | 9.3414 | 0.5425 | 1.8746 | 2.6497 |
| 1.190804 | 15.9107 | 0.7226 | 2.5879 | 3.6632 |
| 1.235989 | 13.3835 | 0.6691 | 2.0878 | 2.1924 |
| 1.281174 | 9.5893 | 0.4989 | 1.4561 | 1.5392 |
| 1.326359 | 8.6943 | 0.5316 | 1.2446 | 1.3534 |
| 1.371544 | 7.7272 | 0.5209 | 1.0805 | 1.1995 |
| 1.416728 | 6.1772 | 0.3943 | 0.8592 | 0.9453 |
| 1.461913 | 7.6227 | 0.4318 | 0.9668 | 1.0588 |
| 1.507098 | 8.2273 | 0.4046 | 1.0155 | 1.0931 |
| 1.552283 | 5.8844 | 0.3575 | 0.7512 | 0.8319 |
| 1.597468 | 3.7176 | 0.2553 | 0.5077 | 0.5683 |
| 1.642653 | 1.8642 | 0.156 | 0.314 | 0.3506 |
| 1.687837 | 0.1268 | 0.0167 | 0.0572 | 0.0596 |
