Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.825 — 1.85 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

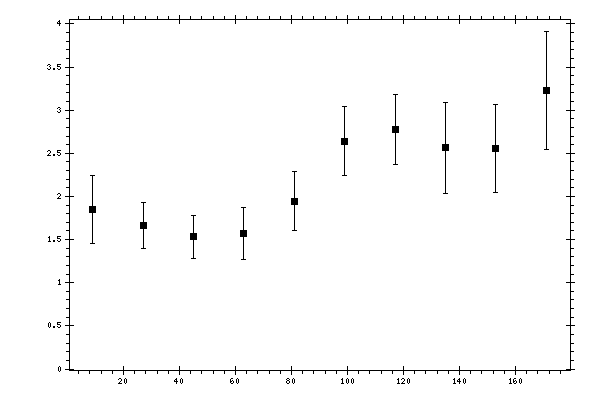

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.8493 | 0.1108 | 0.3739 | 0.39 |
| 27 | 1.6611 | 0.0772 | 0.2582 | 0.2695 |
| 45 | 1.5305 | 0.0712 | 0.2425 | 0.2528 |
| 63 | 1.5709 | 0.0844 | 0.288 | 0.3002 |
| 81 | 1.9442 | 0.0883 | 0.3329 | 0.3444 |
| 99 | 2.6403 | 0.102 | 0.3855 | 0.3987 |
| 117 | 2.7738 | 0.1183 | 0.3899 | 0.4075 |
| 135 | 2.5657 | 0.1541 | 0.3699 | 0.5261 |
| 153 | 2.5605 | 0.136 | 0.3572 | 0.5114 |
| 171 | 3.2293 | 0.1666 | 0.481 | 0.6842 |
