Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.85 — 1.875 GeV | |
| Ebeam : | 5.754 GeV |
|

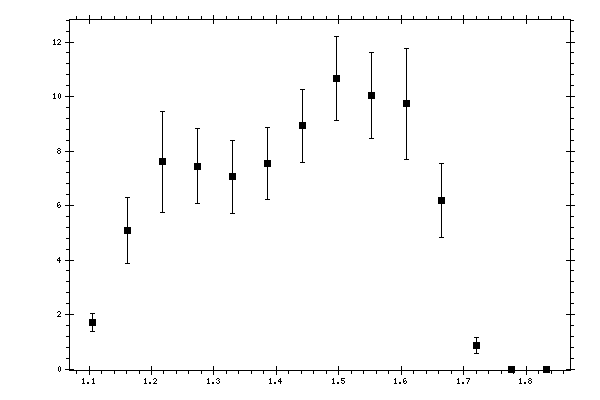

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 1.6983 | 0.1483 | 0.3023 | 0.3367 |
| 1.161691 | 5.0835 | 0.2872 | 0.8603 | 1.2216 |
| 1.21759 | 7.6031 | 0.3353 | 1.3095 | 1.849 |
| 1.273489 | 7.441 | 0.3509 | 1.3249 | 1.3706 |
| 1.329388 | 7.0507 | 0.3074 | 1.29 | 1.3261 |
| 1.385287 | 7.5412 | 0.3814 | 1.2571 | 1.3137 |
| 1.441186 | 8.9208 | 0.4372 | 1.2498 | 1.3241 |
| 1.497086 | 10.6507 | 0.5377 | 1.4514 | 1.5477 |
| 1.552985 | 10.0219 | 0.462 | 1.5107 | 1.5797 |
| 1.608884 | 9.7311 | 0.4415 | 1.4433 | 2.0399 |
| 1.664783 | 6.1845 | 0.4046 | 0.969 | 1.3673 |
| 1.720682 | 0.8635 | 0.1313 | 0.2059 | 0.295 |
| 1.776581 | 0 | 0 | 0 | 0 |
| 1.83248 | 0 | 0 | 0 | 0 |
