Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.85 — 1.875 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

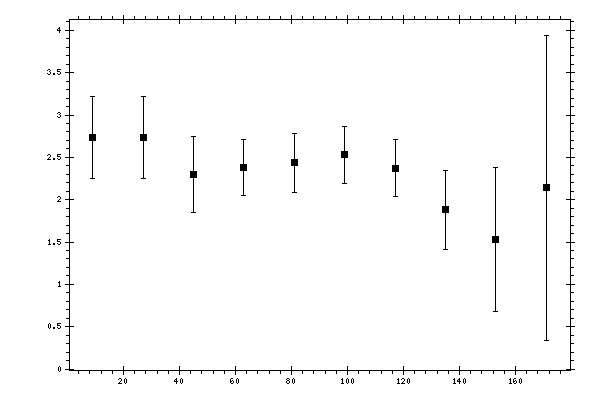

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.7309 | 0.1434 | 0.3437 | 0.4859 |
| 27 | 2.7387 | 0.1342 | 0.3414 | 0.4848 |
| 45 | 2.2962 | 0.1369 | 0.3142 | 0.4463 |
| 63 | 2.3783 | 0.1046 | 0.3158 | 0.3327 |
| 81 | 2.4361 | 0.1087 | 0.3291 | 0.3466 |
| 99 | 2.53 | 0.0771 | 0.3311 | 0.3399 |
| 117 | 2.3738 | 0.0988 | 0.3206 | 0.3354 |
| 135 | 1.8802 | 0.084 | 0.326 | 0.4667 |
| 153 | 1.5289 | 0.093 | 0.5995 | 0.8548 |
| 171 | 2.1403 | 0.0032 | 1.2857 | 1.8024 |
