Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.9 — 1.925 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

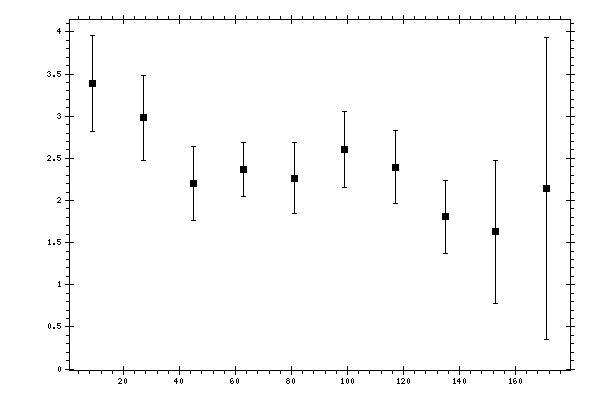

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.3924 | 0.178 | 0.3957 | 0.5684 |
| 27 | 2.979 | 0.1257 | 0.353 | 0.5011 |
| 45 | 2.2019 | 0.1648 | 0.3062 | 0.4391 |
| 63 | 2.3718 | 0.1076 | 0.3014 | 0.32 |
| 81 | 2.263 | 0.0853 | 0.2989 | 0.4201 |
| 99 | 2.5992 | 0.0879 | 0.3192 | 0.4506 |
| 117 | 2.3947 | 0.1077 | 0.3032 | 0.432 |
| 135 | 1.8048 | 0.1088 | 0.3067 | 0.4352 |
| 153 | 1.628 | 0.1372 | 0.5988 | 0.8491 |
| 171 | 2.1405 | 0.0045 | 1.2682 | 1.7909 |
