Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.925 — 1.95 GeV | |
| Ebeam : | 5.754 GeV |
|

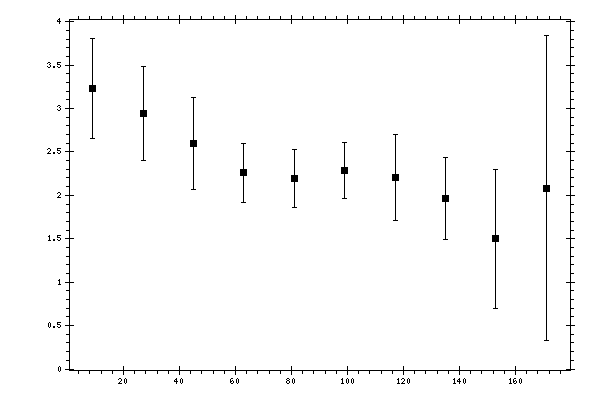

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.2357 | 0.1681 | 0.4062 | 0.5758 |
| 27 | 2.9469 | 0.1381 | 0.3762 | 0.5406 |
| 45 | 2.5971 | 0.2017 | 0.3749 | 0.528 |
| 63 | 2.2624 | 0.1146 | 0.3203 | 0.3402 |
| 81 | 2.1937 | 0.1034 | 0.3148 | 0.3313 |
| 99 | 2.2883 | 0.0678 | 0.3164 | 0.3236 |
| 117 | 2.2058 | 0.0933 | 0.3097 | 0.5006 |
| 135 | 1.9627 | 0.0955 | 0.3268 | 0.4683 |
| 153 | 1.4992 | 0.1333 | 0.5662 | 0.7987 |
| 171 | 2.0831 | 0.0047 | 1.2449 | 1.7604 |
