Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.95 — 1.975 GeV | |
| Ebeam : | 5.754 GeV |
|

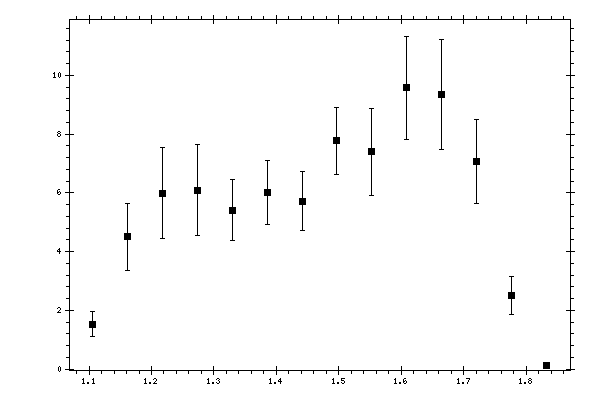

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 1.5328 | 0.1464 | 0.3027 | 0.4307 |
| 1.161691 | 4.4974 | 0.2758 | 0.8164 | 1.1542 |
| 1.21759 | 5.9906 | 0.7145 | 1.0878 | 1.5431 |
| 1.273489 | 6.0938 | 0.3787 | 1.0857 | 1.5446 |
| 1.329388 | 5.4053 | 0.2392 | 1.0158 | 1.0436 |
| 1.385287 | 6.0262 | 0.2616 | 1.0579 | 1.0897 |
| 1.441186 | 5.7183 | 0.3105 | 0.958 | 1.007 |
| 1.497086 | 7.7753 | 0.4199 | 1.0629 | 1.1428 |
| 1.552985 | 7.3924 | 0.3324 | 1.0514 | 1.4876 |
| 1.608884 | 9.5776 | 0.5939 | 1.2384 | 1.7482 |
| 1.664783 | 9.3499 | 0.3865 | 1.3128 | 1.8592 |
| 1.720682 | 7.0716 | 0.5667 | 1.0167 | 1.4379 |
| 1.776581 | 2.4921 | 0.1865 | 0.4658 | 0.6522 |
| 1.83248 | 0.1141 | 0.0123 | 0.0531 | 0.0545 |
