Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.95 — 1.975 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

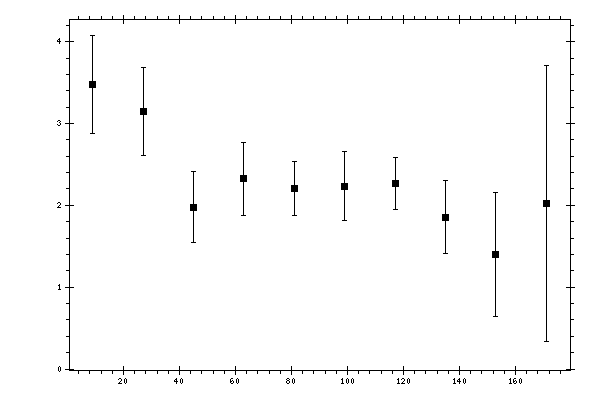

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.4766 | 0.1755 | 0.4151 | 0.6016 |
| 27 | 3.1488 | 0.1552 | 0.3801 | 0.5411 |
| 45 | 1.979 | 0.1959 | 0.3089 | 0.4347 |
| 63 | 2.3262 | 0.0949 | 0.315 | 0.4454 |
| 81 | 2.2081 | 0.1223 | 0.3022 | 0.3261 |
| 99 | 2.236 | 0.0753 | 0.2955 | 0.4249 |
| 117 | 2.2669 | 0.1059 | 0.2977 | 0.316 |
| 135 | 1.8576 | 0.098 | 0.3058 | 0.4411 |
| 153 | 1.402 | 0.0922 | 0.5341 | 0.7611 |
| 171 | 2.0242 | 0.0051 | 1.1953 | 1.6903 |
