Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.975 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|

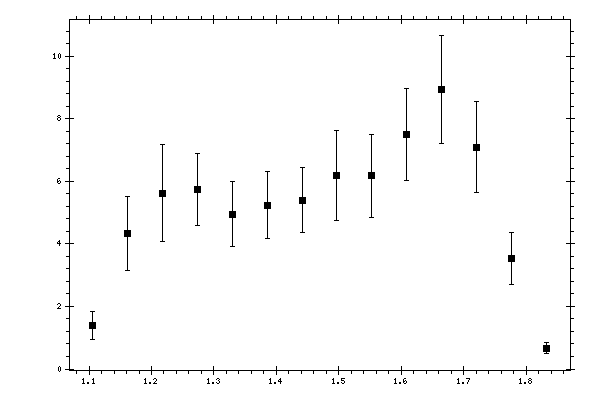

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 1.3904 | 0.1987 | 0.3107 | 0.445 |
| 1.161691 | 4.318 | 0.2471 | 0.8376 | 1.1842 |
| 1.21759 | 5.6229 | 0.3123 | 1.1058 | 1.5613 |
| 1.273489 | 5.7334 | 0.3584 | 1.0893 | 1.1468 |
| 1.329388 | 4.9546 | 0.3222 | 0.9988 | 1.0495 |
| 1.385287 | 5.2368 | 0.3078 | 1.0178 | 1.0633 |
| 1.441186 | 5.3997 | 0.3088 | 0.9938 | 1.0407 |
| 1.497086 | 6.1811 | 0.3027 | 1.0156 | 1.4342 |
| 1.552985 | 6.1733 | 0.3423 | 0.9498 | 1.338 |
| 1.608884 | 7.497 | 0.4011 | 1.04 | 1.4716 |
| 1.664783 | 8.9318 | 0.4257 | 1.2135 | 1.7177 |
| 1.720682 | 7.0894 | 0.4376 | 1.0249 | 1.4513 |
| 1.776581 | 3.5243 | 0.2933 | 0.5847 | 0.8329 |
| 1.83248 | 0.6611 | 0.0624 | 0.1688 | 0.18 |
