Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.975 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

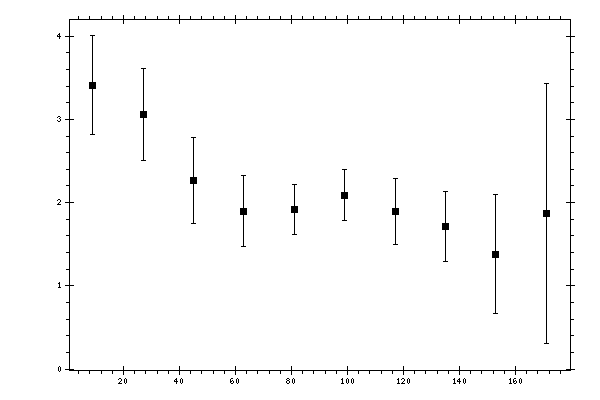

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.4118 | 0.1655 | 0.4209 | 0.5985 |
| 27 | 3.0573 | 0.1518 | 0.3904 | 0.5531 |
| 45 | 2.2658 | 0.1483 | 0.3591 | 0.5144 |
| 63 | 1.8988 | 0.0766 | 0.3005 | 0.4293 |
| 81 | 1.9202 | 0.0772 | 0.2917 | 0.3017 |
| 99 | 2.0913 | 0.0753 | 0.3005 | 0.3098 |
| 117 | 1.8913 | 0.0916 | 0.2791 | 0.3964 |
| 135 | 1.7111 | 0.0984 | 0.2964 | 0.4206 |
| 153 | 1.3802 | 0.1094 | 0.4983 | 0.7126 |
| 171 | 1.867 | 0.005 | 1.103 | 1.5613 |
