Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.975 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|

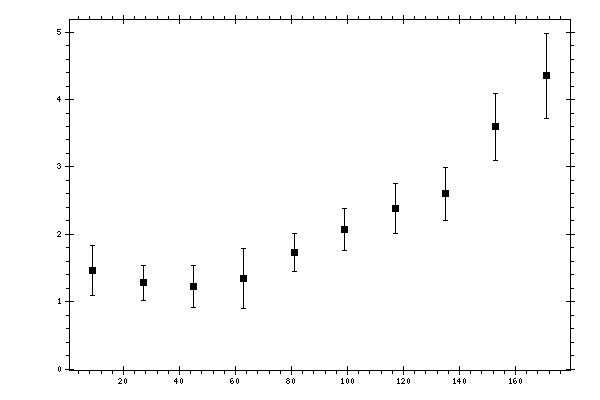

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.4583 | 0.0924 | 0.2582 | 0.3681 |
| 27 | 1.281 | 0.0657 | 0.1821 | 0.2601 |
| 45 | 1.2246 | 0.0651 | 0.2215 | 0.3158 |
| 63 | 1.3393 | 0.0807 | 0.3178 | 0.4444 |
| 81 | 1.7326 | 0.1009 | 0.2643 | 0.2829 |
| 99 | 2.0722 | 0.0965 | 0.2944 | 0.3098 |
| 117 | 2.3854 | 0.1054 | 0.3561 | 0.3714 |
| 135 | 2.5993 | 0.1097 | 0.379 | 0.3946 |
| 153 | 3.5938 | 0.1688 | 0.4713 | 0.5006 |
| 171 | 4.3512 | 0.2316 | 0.5816 | 0.626 |
