Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2 — 2.025 GeV | |
| Ebeam : | 5.754 GeV |
|

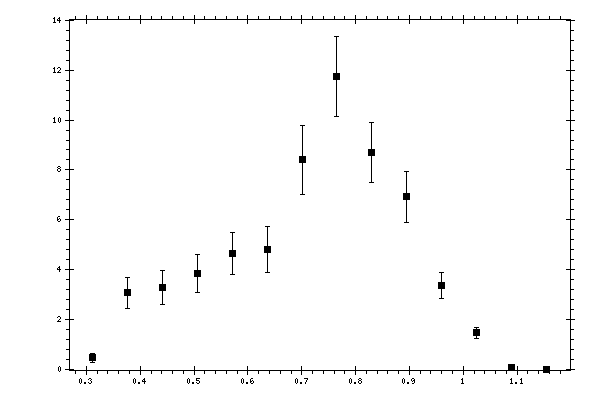

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 0.311554 | 0.4539 | 0.0339 | 0.1752 | 0.1784 |
| 0.376382 | 3.0597 | 0.2267 | 0.5757 | 0.6187 |
| 0.44121 | 3.2668 | 0.2116 | 0.6375 | 0.6717 |
| 0.506037 | 3.8305 | 0.3264 | 0.7005 | 0.7728 |
| 0.570865 | 4.6483 | 0.2579 | 0.8144 | 0.8543 |
| 0.635693 | 4.7924 | 0.223 | 0.8991 | 0.9263 |
| 0.70052 | 8.4115 | 0.3606 | 1.3425 | 1.3901 |
| 0.765348 | 11.7554 | 0.5275 | 1.5086 | 1.5982 |
| 0.830176 | 8.7002 | 0.4799 | 1.0969 | 1.1973 |
| 0.895003 | 6.9203 | 0.5615 | 0.8453 | 1.0148 |
| 0.959831 | 3.3586 | 0.1815 | 0.5004 | 0.5323 |
| 1.024659 | 1.4483 | 0.1124 | 0.1702 | 0.204 |
| 1.089486 | 0.0486 | 0.0077 | 0.0149 | 0.0168 |
| 1.154314 | 0 | 0 | 0 | 0 |
