Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2 — 2.025 GeV | |
| Ebeam : | 5.754 GeV |
|

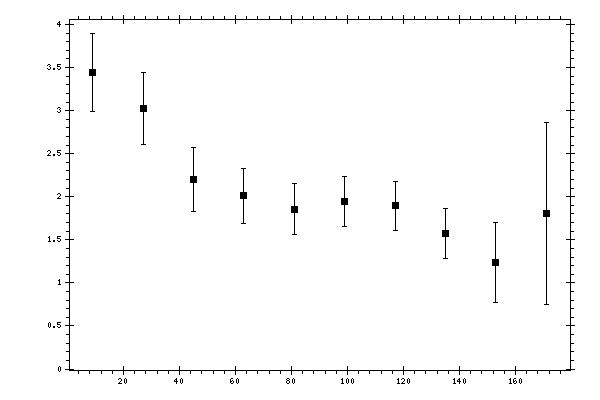

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.444 | 0.1651 | 0.4196 | 0.4509 |
| 27 | 3.0247 | 0.1641 | 0.3828 | 0.4165 |
| 45 | 2.2001 | 0.138 | 0.3405 | 0.3674 |
| 63 | 2.0134 | 0.0998 | 0.3022 | 0.3183 |
| 81 | 1.8567 | 0.118 | 0.2761 | 0.3002 |
| 99 | 1.944 | 0.0695 | 0.2803 | 0.2888 |
| 117 | 1.8928 | 0.0779 | 0.274 | 0.2849 |
| 135 | 1.5779 | 0.099 | 0.2738 | 0.2911 |
| 153 | 1.234 | 0.0769 | 0.4551 | 0.4616 |
| 171 | 1.8094 | 0.0271 | 1.0573 | 1.0577 |
