Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2 — 2.025 GeV | |
| Ebeam : | 5.754 GeV |
|

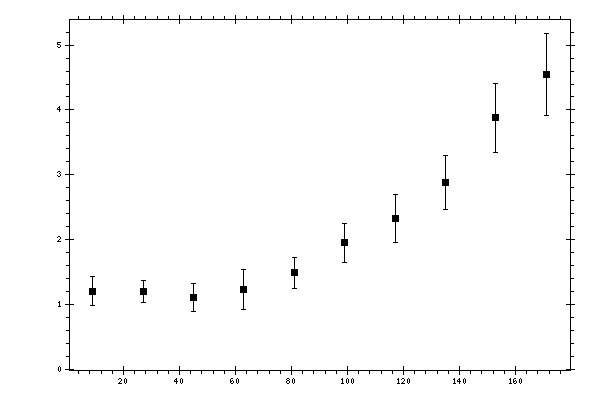

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.2014 | 0.0835 | 0.2121 | 0.2279 |
| 27 | 1.1978 | 0.0576 | 0.1655 | 0.1753 |
| 45 | 1.1048 | 0.0694 | 0.2048 | 0.2162 |
| 63 | 1.2283 | 0.0993 | 0.2989 | 0.3149 |
| 81 | 1.4871 | 0.078 | 0.2243 | 0.2374 |
| 99 | 1.9456 | 0.0974 | 0.2811 | 0.2975 |
| 117 | 2.3255 | 0.1063 | 0.3547 | 0.3703 |
| 135 | 2.8768 | 0.138 | 0.3928 | 0.4164 |
| 153 | 3.88 | 0.2224 | 0.4864 | 0.5349 |
| 171 | 4.5425 | 0.2639 | 0.5744 | 0.6321 |
