Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2.025 — 2.05 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

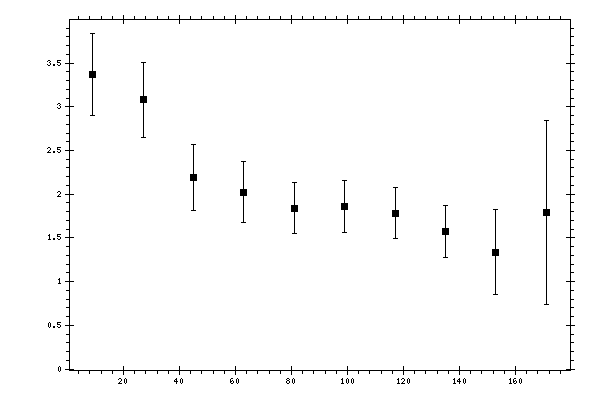

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.3673 | 0.223 | 0.4148 | 0.4709 |
| 27 | 3.0779 | 0.1587 | 0.3983 | 0.4288 |
| 45 | 2.1895 | 0.136 | 0.3484 | 0.374 |
| 63 | 2.0227 | 0.1345 | 0.3219 | 0.3488 |
| 81 | 1.842 | 0.0803 | 0.2806 | 0.2919 |
| 99 | 1.8581 | 0.0745 | 0.2835 | 0.2931 |
| 117 | 1.7831 | 0.0919 | 0.2758 | 0.2908 |
| 135 | 1.5724 | 0.0845 | 0.2834 | 0.2958 |
| 153 | 1.3359 | 0.1108 | 0.4707 | 0.4835 |
| 171 | 1.7925 | 0.0228 | 1.0487 | 1.049 |
